G80 CHAIN SHORTENER LINK |
GSJX80-73 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
6-8 |
0.21 |
1.2 |
4.8 |
7/8-8 |
0.4 |
2.00 |
8.00 |
10-8 |
0.94 |
3.20 |
12.80 |
13-8 |
1.75 |
5.40 |
21.60 |
16-8 |
3.16 |
8.20 |
32.80 |
20-8 |
6.2 |
12.50 |
50.00 |
22-8 |
8.50 |
15 |
60 |
|
|
G80 欧式双环扣 |

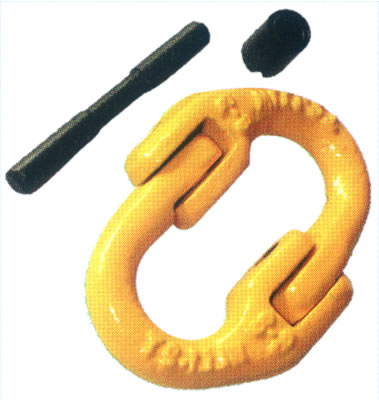

G80 EUROPEAN
TYPE CONNECTING LINK |
GSJX80-74 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
6-8 |
0.14 |
1.20 |
4.8 |
7/8-8 |
0.2 |
2.00 |
8 |
10-8 |
0.38 |
3.20 |
12.8 |
13-8 |
0.76 |
5.40 |
21.6 |
16-8 |
1.10 |
8.20 |
32.8 |
20-8 |
1.80 |
12.5 |
50 |
22-8 |
3.2 |
15.25 |
61 |
26-8 |
4.5 |
21.25 |
85 |
32-8 |
9 |
32.20 |
128.80 |
|
|
G80 美式双环扣 |

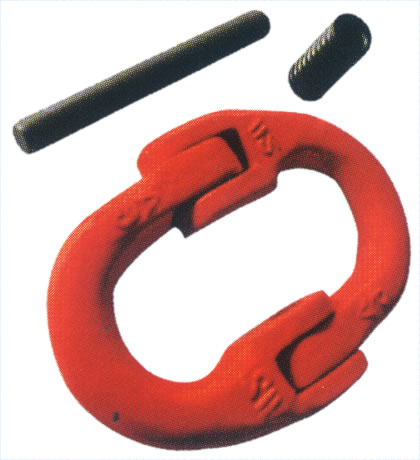

G80 U.S.TYPE CONNECTING LINK |
GSJX80-75 |
SIZE |
WEIGHT/LBS |
WLL/T |
B.L/LBS |
1/4 |
0.25 |
3250 |
13000 |
3/8 |
0.61 |
6600 |
26400 |
1/2 |
1.25 |
11250 |
45000 |
5/8 |
2.31 |
16500 |
66000 |
3/4 |
4/01 |
23000 |
92000 |
7/8 |
5.75 |
28750 |
115000 |
1 |
8.12 |
38750 |
155000 |
11/4 |
15.22 |
57500 |
230000 |
|
|
|

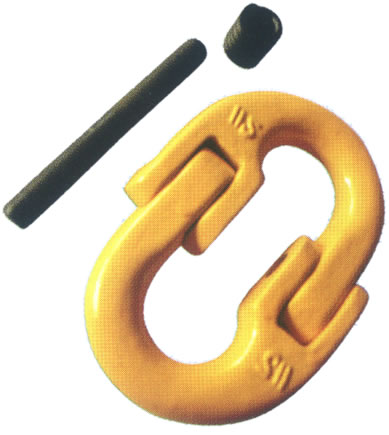

G80 U.S.TYPE CONNECTING LINK |
GSJX80-76 |
SIZE |
WEIGHT/LBS |
WLL/T |
B.L/LBS |
1/4 |
0.29 |
4100 |
16400 |
3/8 |
0.56 |
7300 |
29200 |
1/2 |
1.06 |
13000 |
52000 |
5/8 |
2.43 |
20300 |
81200 |
3/4 |
4.2 |
29300 |
117200 |
7/8 |
6.81 |
39900 |
159600 |
1 |
8.22 |
52100 |
208400 |
11/4 |
17.25 |
81400 |
325600 |
|
|
G80 新型
眼型安全钩 |

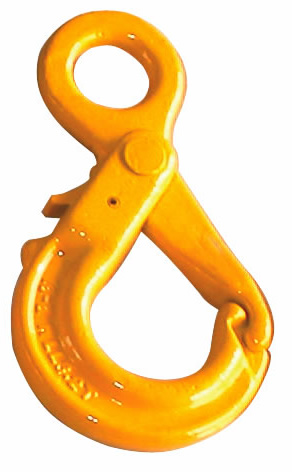

G80 NEW EYE
SELF-LOCKING SAFETY HOOK
|
GSJX80-77 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
7/8-8 |
0.83 |
2.00 |
8 |
10-8 |
1.26 |
3.20 |
12.8 |
13-8 |
2.12 |
5.40 |
21.60 |
16-8 |
3.49 |
8.20 |
32.80 |
|
|
G80 新型
羊角安全钩 |

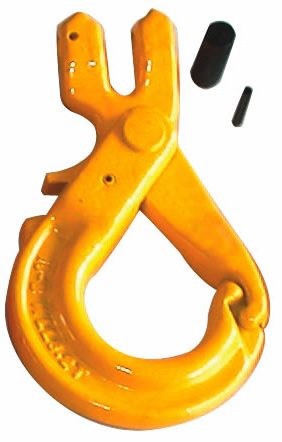

G80 NEW CLEVIS
SELF-LOCKIING SAFETY HOOK |
GSJX80-78 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
7/8-8 |
0.85 |
2.00 |
8 |
10-8 |
1.4 |
3.20 |
12.8 |
13-8 |
2.5 |
5.40 |
21.6 |
16-8 |
5.6 |
8.20 |
32.8 |
|
|
G80 异型
链接双环扣 |

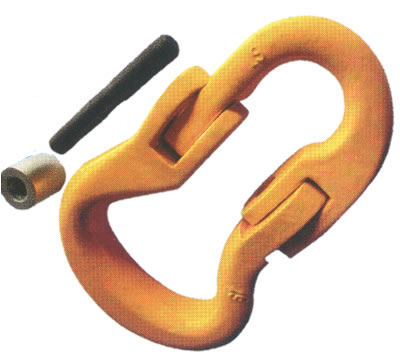

G80 SPECIAL
CONNECTING LINK |
GSJX80-79 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
19MM |
2.80 |
12.5 |
50 |
22MM |
4.30 |
15.25 |
61 |
25MM |
8.5 |
|
|
|
|
|
|
|
|
G80 双杈双环扣 |

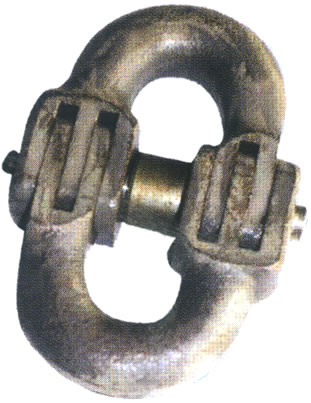

G80 CONNECTING LINK |
GSJX80-80 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
6-8 |
0.14 |
1.2 |
4.8 |
10-8 |
0.28 |
3.2 |
12.8 |
|
|
|
|
|
|
G80 欧式
眼型安全钩 |

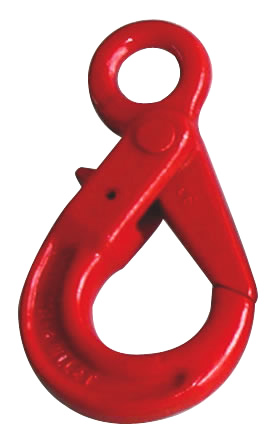

G80 EYE SELF-LOCKING
SAFETY HOOK |
GSJX80-81 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
6-8 |
0.50 |
1.2 |
4.8 |
7/8-8 |
0.80 |
2.00 |
8.00 |
10-8 |
1.50 |
3.20 |
12.80 |
13-8 |
3.2 |
5.40 |
21.60 |
16-8 |
6.10 |
8.20 |
32.80 |
18/20-8 |
7.50 |
12.50 |
50 |
22-8 |
13.40 |
15.00 |
60.00 |
26-8 |
14.50 |
21.20 |
84.8 |
32-8 |
|
31.50 |
126.0 |
|
|
G80 欧式
羊角安全钩 |

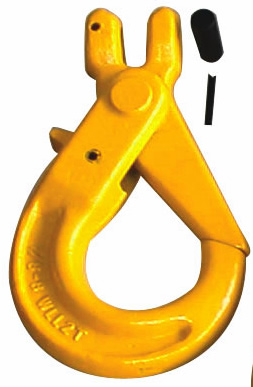

G80 CLEVLS SELEF-LOCKING
SAFETY HOOK |
GSJX80-82 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
6-8 |
0.45 |
1.2 |
4.8 |
7/8-8 |
0.85 |
2.00 |
8.00 |
10-8 |
1.45 |
3.20 |
12.80 |
13-8 |
2.90 |
5.40 |
21.60 |
16-8 |
5.60 |
8.20 |
32.80 |
18/20-8 |
6.5 |
12.50 |
50 |
22-8 |
16 |
15.00 |
60.00 |
26-8 |
|
21.20 |
84.8 |
32-8 |
|
31.50 |
126.0 |
|
|
G80 欧式
旋转安全钩 |

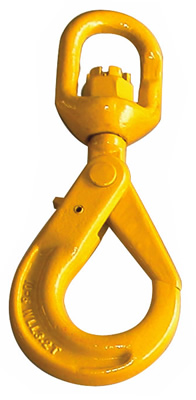

G80 SWIVEL SELF-LOCKING
SAFETY HOOK |
GSJX80-83 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
6-8 |
0.71 |
1.2 |
4.8 |
7/8-8 |
1.3 |
2.00 |
8.00 |
10-8 |
2.2 |
3.20 |
12.80 |
13-8 |
.5 |
5.40 |
21.60 |
16-8 |
8.2 |
8.20 |
32.80 |
18/20-8 |
11.7 |
12.50 |
50 |
22-8 |
16 |
15.00 |
60.00 |
26-8 |
21.5 |
21.20 |
84.8 |
32-8 |
|
31.50 |
126.0 |
|
|
不锈钢
双环扣316 304 |

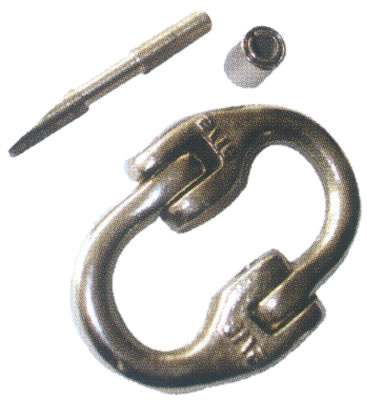

U.S.TYPE OCNNECTING
LINK SS316 304 |
GSJX80-84 |
SIZE |
WEIGHT/LBS |
WLL/BLS |
B.L/LBS |
1/4 |
0.25 |
3250 |
13000 |
3/8 |
0.61 |
6600 |
26400 |
1/2 |
1.25 |
11250 |
45000 |
5/8 |
2.31 |
16500 |
66000 |
3/4 |
4.01 |
23000 |
92000 |
7/8 |
5.75 |
28750 |
11500 |
1 |
8.12 |
38750 |
155000 |
11/4 |
15.22 |
57500 |
230000 |
|
|
G80 眼型带翅抓钩 |

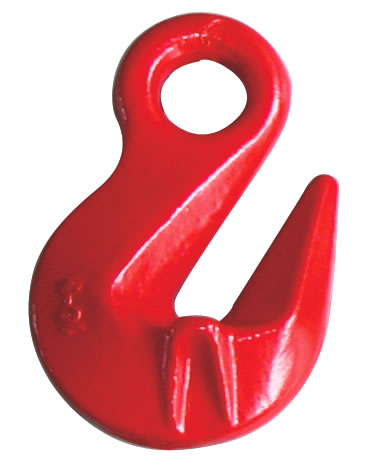

G80 EYE SHORTENING
GRAB HOOK |
GSJX80-85 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
6-8 |
0.175 |
1.2 |
4.8 |
7/8-8 |
0.307 |
2.00 |
8.00 |
10-8 |
0.75 |
3.20 |
12.80 |
13-8 |
1.40 |
5.40 |
21.60 |
16-8 |
2.30 |
8.20 |
32.80 |
20-8 |
4.60 |
12.80 |
51.2 |
22-8 |
8.2 |
16.00 |
64.00 |
26-8 |
9.8 |
21.20 |
84.8 |
32-8 |
19.4 |
31.50 |
126.0 |
|
|
G80 羊角带翅抓钩 |

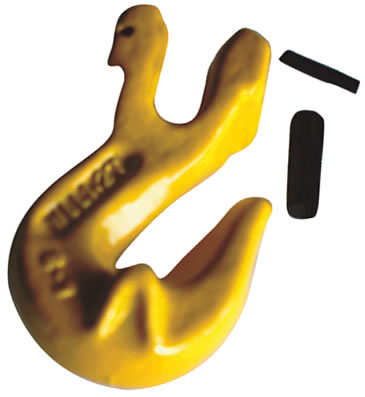

G80 CLEVIS SHORTENING
GRAB HOOK |
GSJX80-86 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
6-8 |
0.245 |
1.2 |
4.8 |
7/8-8 |
0.32 |
2.00 |
8.00 |
10-8 |
0.73 |
3.20 |
12.80 |
13-8 |
1.60 |
5.40 |
21.60 |
16-8 |
2.80 |
8.20 |
32.80 |
20-8 |
4.13 |
12.80 |
51.2 |
22-8 |
6.30 |
16.00 |
64.00 |
26-8 |
|
21.20 |
84.8 |
32-8 |
|
31.50 |
126.0 |
|
|
G80 DV钩 |

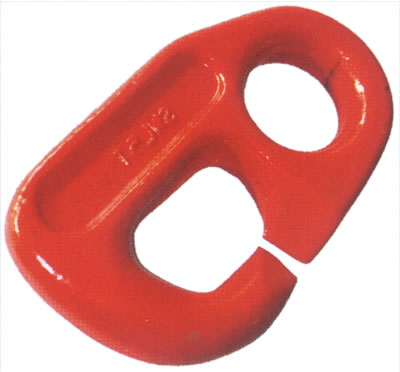

G80 "DV"-LINK HOOK |
GSJX80-87 |
SIZE |
WEIGHT/LBS |
WLL/LBS |
B.L/LBS |
3T |
0.73 |
3 |
15 |
5T |
1.2 |
5 |
25 |
8T |
1.6 |
8 |
40 |
|
|
G80 眼型象脚 |

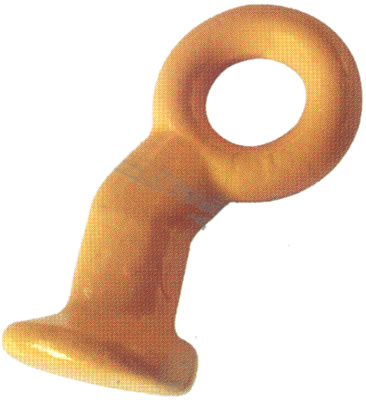

G80 EYE ELEPHANT HOOK |
GSJX80-88 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
30MM |
0.74 |
2.2 |
8.8 |
| |
|
|
|
| |
|
|
|
|
|
G80 羊角制索带钩 |

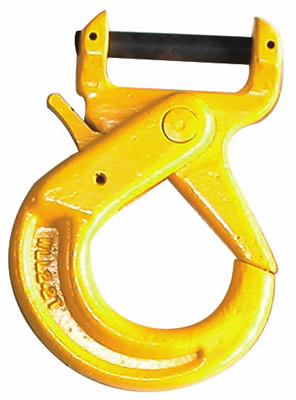

G80 CLEVIS BELT HOOK |
GSJX80-89 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
2.2T |
1.92 |
2.2 |
8.8 |
| |
|
|
|
| |
|
|
|
|
|
G80 眼型拉索带钩
|

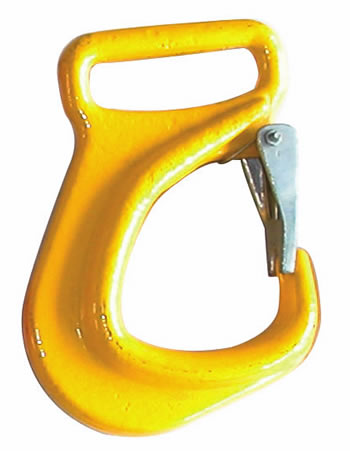

G80 EYE BELT HOOK |
GSJX80-90 |
SIZE |
WEIGHT/kg |
WLL/T |
B.L/T |
2.2T |
2.10 |
2.2 |
8.8 |
| |
|
|
|
| |
|
|
|
|
|
