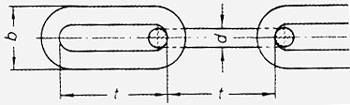

DIN763 LONG LINK CHAIN E.G.
Size(mm)
Size
d
Inside Length
t
Outside Width
b
Weight
per 100m
Test
Load
Breaking
Load
Weight
per Meter
mm
±mm
mm
±mm
mm
±mm
kg
kn
kn
kg
3
3
0.5
26
1.2
12
0.6
55
1.05
3.2
0.15
4
4
32
1.5
16
0.8
100
2.0
6.0
0.27
5
5
35
1.8
20
1.0
160
3.15
10.0
0.43
6
6
42
2.0
24
1.2
224
4.5
14.0
0.63
7
7
49
2.5
28
1.4
300
6.0
18.0
0.86
8
8
52
2.5
32
1.6
400
8.0
25.0
1.10
9
9
59
3.0
36
1.8
530
10.5
32.0
1.41
10
10
1
65
3.2
40
2.0
630
12.5
40.0
1.75
11
11
72
3.4
44
2.0
790
15.8
47.5
2.11
12
12
78
3.6
48
2.3
940
18.8
56.5
2.55
13
13
82
4.0
52
2.5
1000
21.2
63.0
2.95
16
16
100
5.0
64
3.2
1600
33.0
100
4.45
18
18
113
5.2
70
3.2
2120
42.3
127
5.65
19
19
119
5.6
72
3.4
2370
47.3
142
6.25
20
20
120
6.0
75
3.8
2500
50.0
160
7.00
22
22
127
6.0
82
4.0
3170
63.3
190
8.55
25
25
140
6.6
88
4.2
4090
81.7
245
10.90
Stainless Chain DIN 763
AISI316
Size(mm)
Diameter
(mm)
Inside Length
(mm)
Inside width
(mm)
Weight
(kg/m)
3
3
26
6
0.15
4
4
32
8
0.27
5
5
35
10
0.43
6
6
42
12
0.63
7
7
49
14
0.86
8
8
52
16
1.10
9
9
59
18
1.41
10
10
65
20
1.75
13
13
85
26
2.95
